Water Absorption:＜0.01%
Contraction Percentage:＜0.4%
Tensile Strength:30~40MPa
Light Transmittance:85%~90%
Density:2.13–2.20 G/Cm³
Elongation at Break:250%–350%
Dielectric Strength:80–100 kV/mm
Pressure Rating: 0.5–5 MPa (Varies with Wall Thickness)

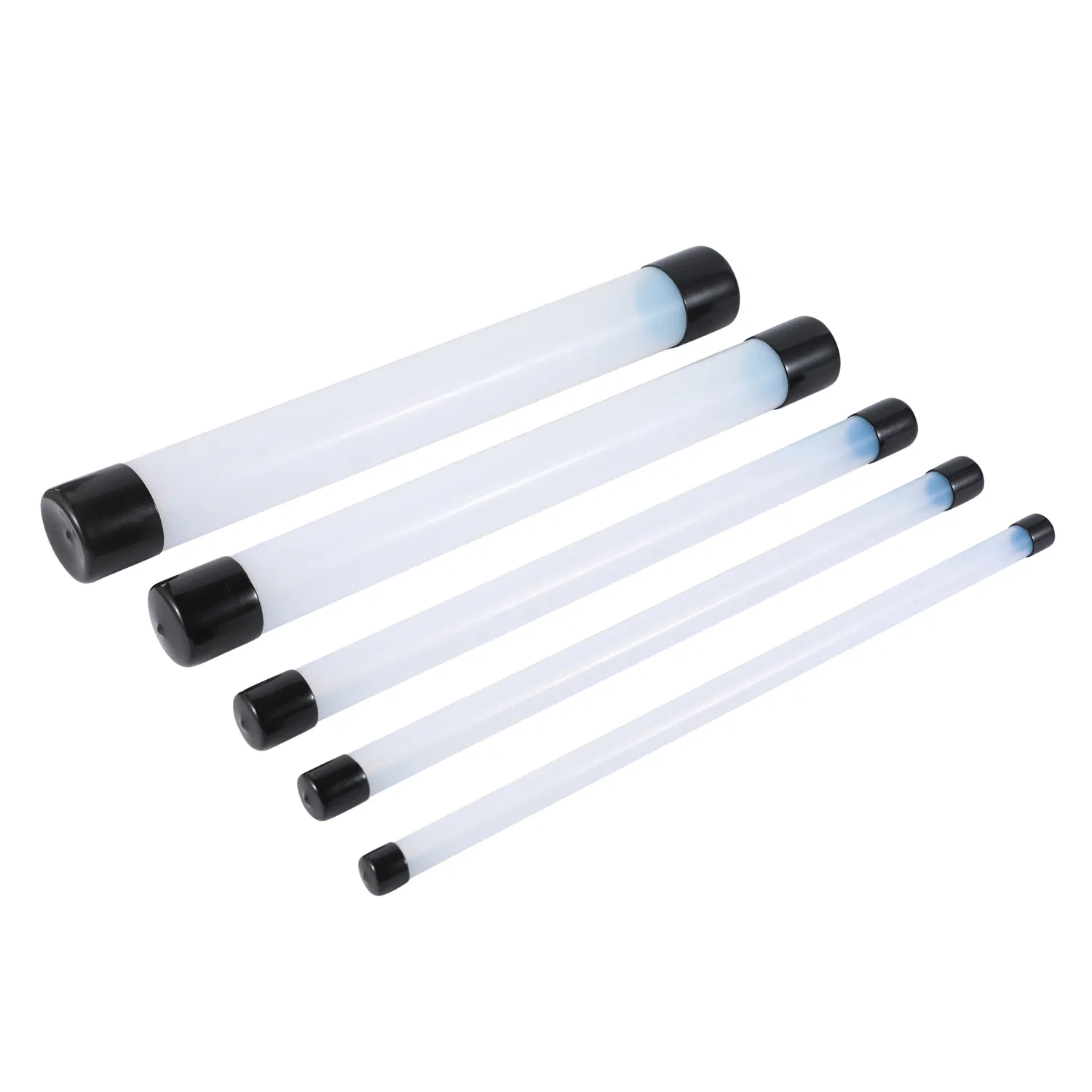

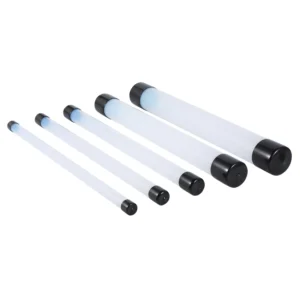

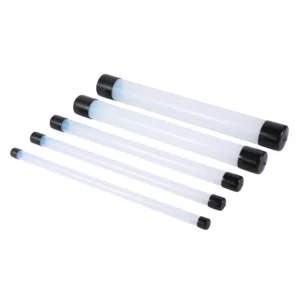

PFA (perfluoroalkoxy) is the product of choice for applications involving extreme chemical resistance combined with high temperature exposure. Although PFA is available in a variety of resin grades, TECHYOURS® 04 PFA tubing is made exclusively from the highest molecular weight resins available, giving it superior physical properties, making it suitable for even the most demanding applications.
Resistant to strong acids, alkali, and most organic solvents, suitable for use in corrosive environments.
| ID | WALL | OD | BEND RADIUS | WORKING PRESSURE |
| 2mm | 1mm | 4mm | 1-1/2″ | 464 |
| 4mm | 1mm | 6mm | 1-3/4″ | 309 |
| 6mm | 1mm | 8mm | 2-1/2″ | 232 |
| 8mm | 1mm | 10mm | 2-3/4″ | 186 |
| 10mm | 1mm | 12mm | 4″ | 155 |
