Contraction Percentage:＜0.4%
Tensile Strength:25-45MPa
Density:2.1–2.2 G/m³
Elongation at Break:200-350%
Compression Strength:24MPa
Working Temp:-180~260ºC
Melting Point:330ºC
Produce Max.Temp:390ºC

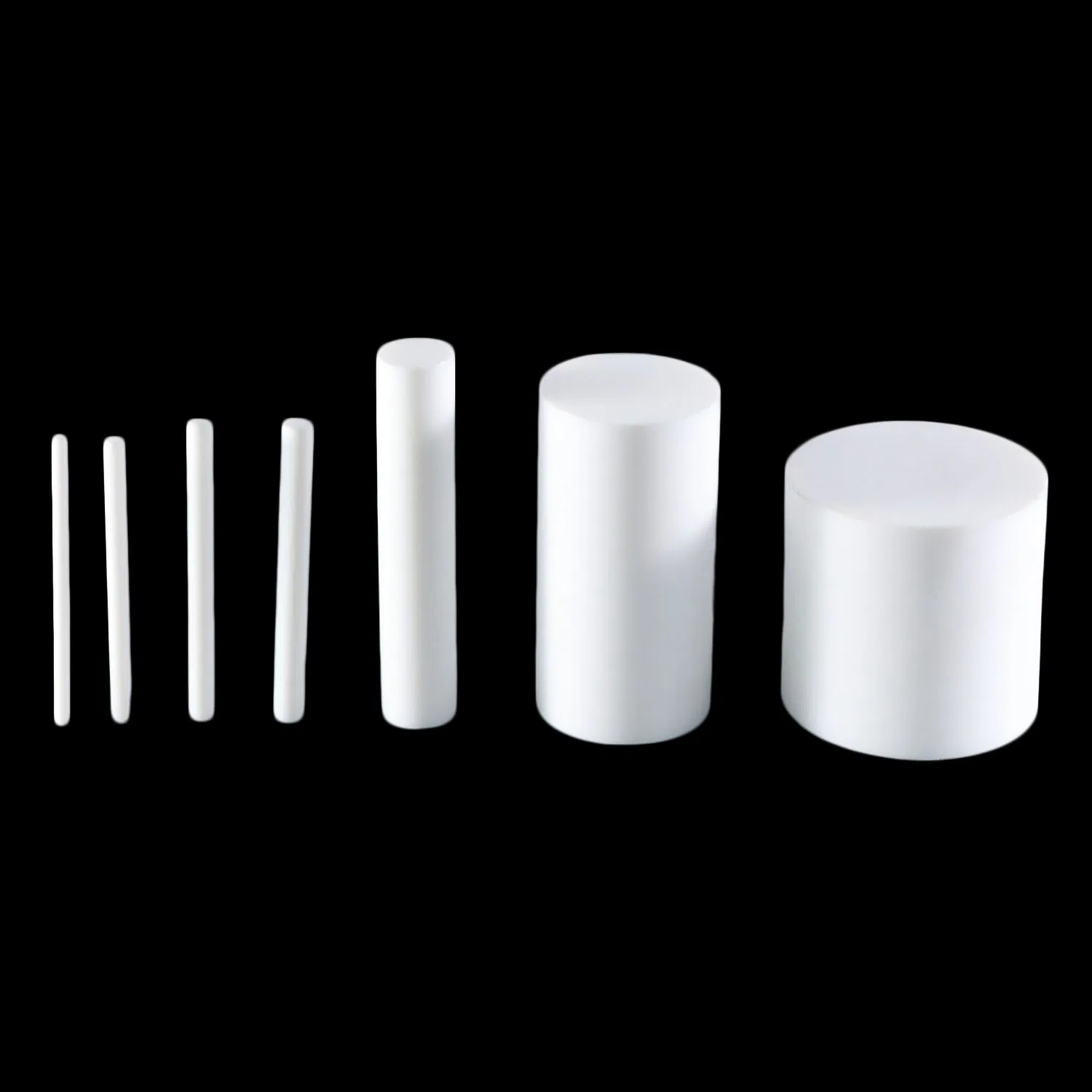

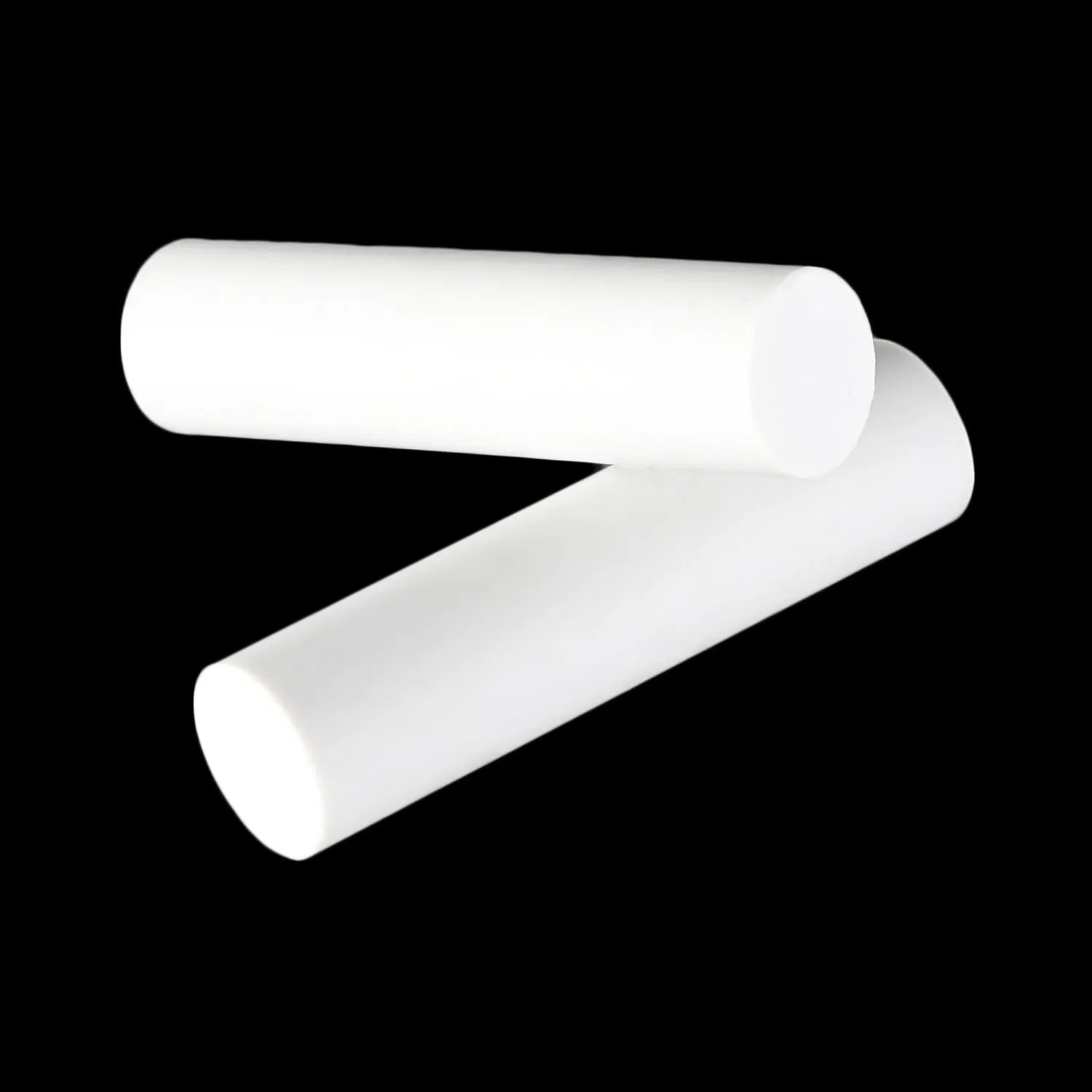

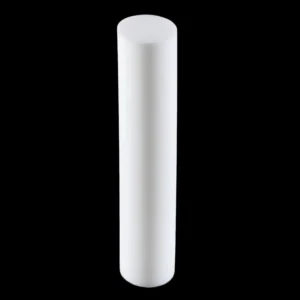

The Chunhuan PTFE Virgin Extruded Rod range starts from 4mm to 160mm and is available in 1 or 2Mtr lengths.
The Moulded Rod range starts at 30mm diameter and is available in various lengths up to 300mm.
Excellent chemical resistance:
Resistant to strong acids, alkalis, and most organic solvents, suitable for use in corrosive environments.
| Diameter(mm) | Dia. Tolerance(mm) | Length(mm) |
| 4~9 | +0.48~0.58 | 1000/2000 |
| 10~50 | +1.1~1.6 | 1000/2000 |
| 55~200 | +2.0~5.0 | 1000/2000 |
| Item | Unit | Value |
| Gravity | g/cm3 | 2.10-2.30 |
| Tensile Strength | MPa | more than 14 |
| Elongation Break | % | more than 140 |
