Contraction Percentage:＜0.4%
Tensile Strength:25-45MPa
Density:2.1–2.2 G/m³
Elongation at Break:200-350%
Compression Strength:24MPa
Working Temp:-180~260ºC
Melting Point:330ºC
Produce Max.Temp:390ºC

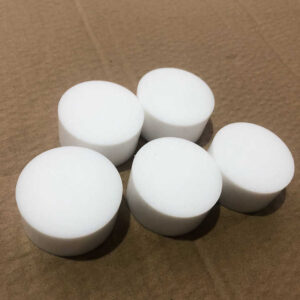

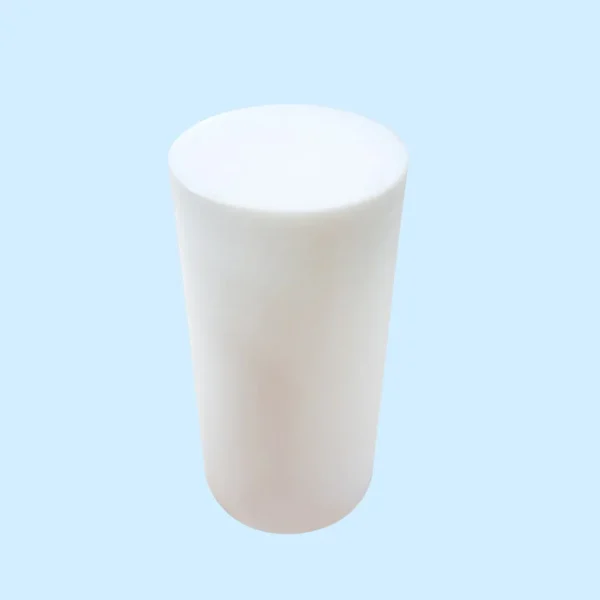

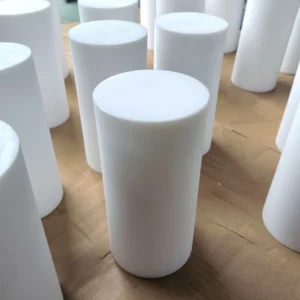

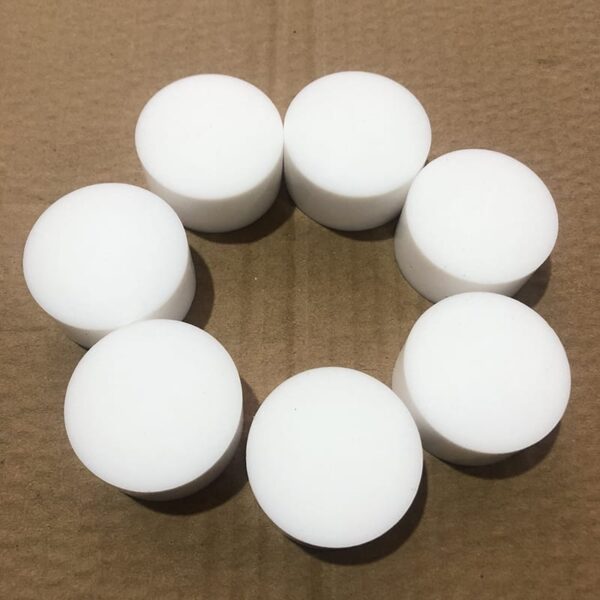

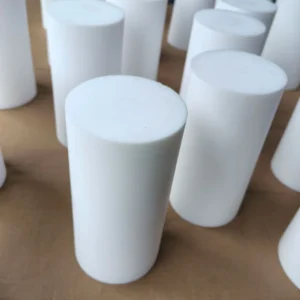

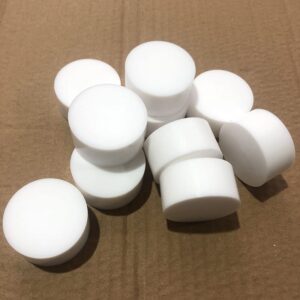

Pure PTFE Molded Rod is a high-performance engineering material manufactured from 100% virgin polytetrafluoroethylene resin
through compression molding and sintering processes. It exhibits exceptional chemical resistance, withstanding virtually all
aggressive acids, alkalis, and solvents except molten alkali metals. The material features an ultra-low coefficient of friction
(0.05-0.10) and outstanding electrical insulation properties (dielectric strength ≥20 kV/mm). With a continuous service
temperature range of -200°C to +260°C, it maintains dimensional stability under extreme conditions. Typical applications include
semiconductor processing fixtures, chemical pump bushings, and high-voltage insulators. Compliant with ASTM D4894 Type I
standards, the rods are supplied in precision-ground diameters from 5mm to 300mm with length customization available.
Material: 100% virgin PTFE, no recycling.
Certificate: ISO9001, MSDS, RoHS, REACH, FDA, Certificate of Origin.
Size: could be made based on the customer’s requirement.
Payment item: T/T, L/C, DP, or others.
Price item: FOB, CIF, CF, R, and so on.
Delivery time: As promised, usually within 7-10 days.
item | unit | value |
| Gravity | g/cm3 | 2.10-2.3 |
| Tensile Strength | MPa | 30~40MPa |
| Elongation | % | 200-400 |
| Dielectric Strength | Kv/mm | 10 |
| Specification | As per your requirement | |
| Water Absorption | % | <0.01 |
| Transport Package | Plastic and Wooden Box |
